SPECIFICATIONS
Brand Name: ansnal
Origin: Mainland China
Network Type: LTE
Certification: CE
Certification: FCC
Certification: RoHS
Frequency: 1800MHZ
Model Number: AXN17A-DCS
Frequency Band: 4G Signal Booster 1800mhz Cellular Repeater
(4G LTE 1800)Frequency Range: Uplink:1710-1785mhz;Downlink:1805-1880mhz
Feature: Improve 2G 4G at the same time
Suitable for: Russia, Spain, France, Brazil, Europe, Asia, etc
Warranty: 1 year
Coverage: 200-600sqm without barriers
Output Power: 20dBM
Gain: 70dB 4G Cellular Amplifier
Cellular Amplifier: 4G 1800 MHz Signal Repeater Cell Phone Amplifier
Cellular Network: GSM 2G/3G/4G Signal
Mobile Phone Accessories: 2G 3G 4G Antenna,10m Coaxial Cable,Plug
Power Supply: Ac 110/220v; Dc 5v,1A
1800 Mhz Cellular booster: 4G Commmunication Amplifier
If you encounter any after-sales problems after receiving the goods (for example: the goods are liked but not needed; the package is damaged; the power supply is damaged; the equipment is damaged; the installation and other problems) hope you can contact us immediately After-sales customer service to solve! Please do not immediately raise disputes or leave bad comments. I believe our after-sales service will perfectly solve all your after-sales problems
Big Sale!!1800Mhz LTE GSM 4G Cellular Amplifier ALC cellular signal booster DCS LTE 1800 4G NetWork Mobile Signal Booster Repeater gsm 2g 3g 4g Booseter
1.1PCS Booster=DCS1800 +Power supply;
2.Full Set=DCS1800+Yagi Antenna+Ceiling Antenna +10Meter Cable +Power supply
What's Package Included!!!!
1. DCS 1800 Signal Booster Signal Booster ;
2.Outdoor Yagi Antenna;
3. Indoor Ceiling Antenna;
4.10 Meter Coxial Cable;
5.Mounting Hardware;
6. Power Supply;
7. User Menual;
This booster works for Band3)1800mhz Signal.Only Frequency is match,The Booster can work. Please check which band your cell phone is using firstly by the methods below:
The booster can only amplify signal, it can't create signal. If there is no outside signal, the booster will not work for you. Please make sure you can make calls successfully outside your Room.
For iPhone:
Dial *3001#12345#*, then press Call button
Click 'Serving Cell Info'
Check 'Freq Band Indicator';
For Android phone(XiaoMi Phone and HuaWei Phone):
Download and install the app: LTE Discovery, tap ‘SIGNALS' and check band number.

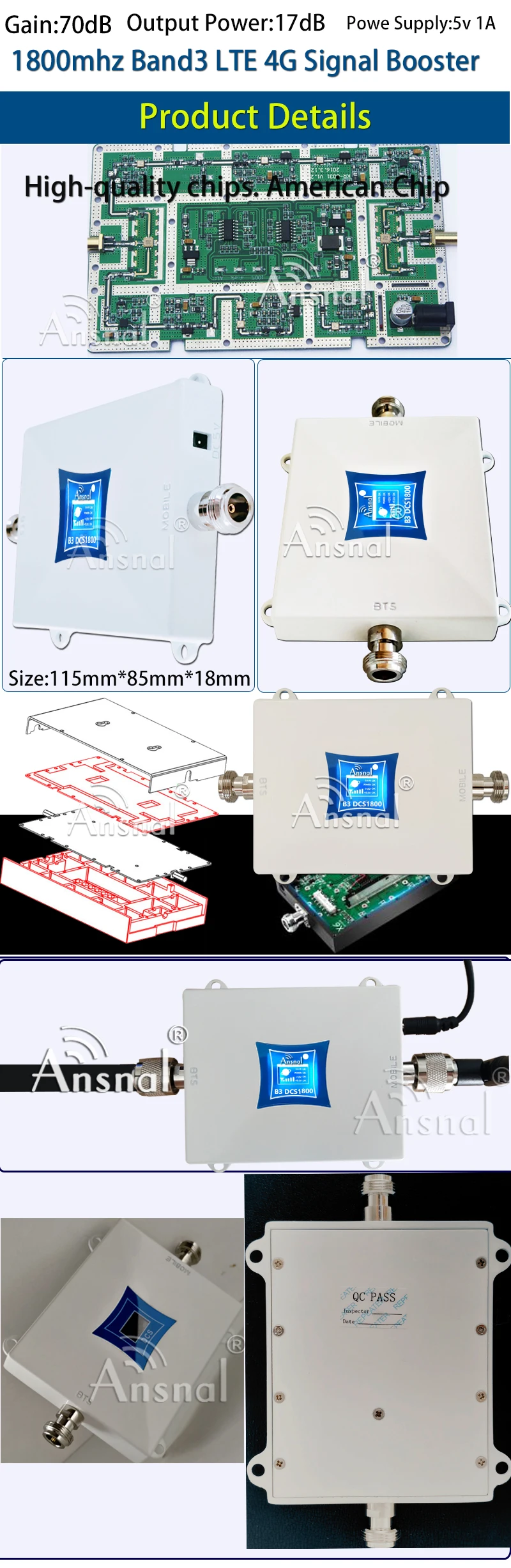

4G Signal Booster Band3)1800mhz,Cellular Amplifier Functional Description!!

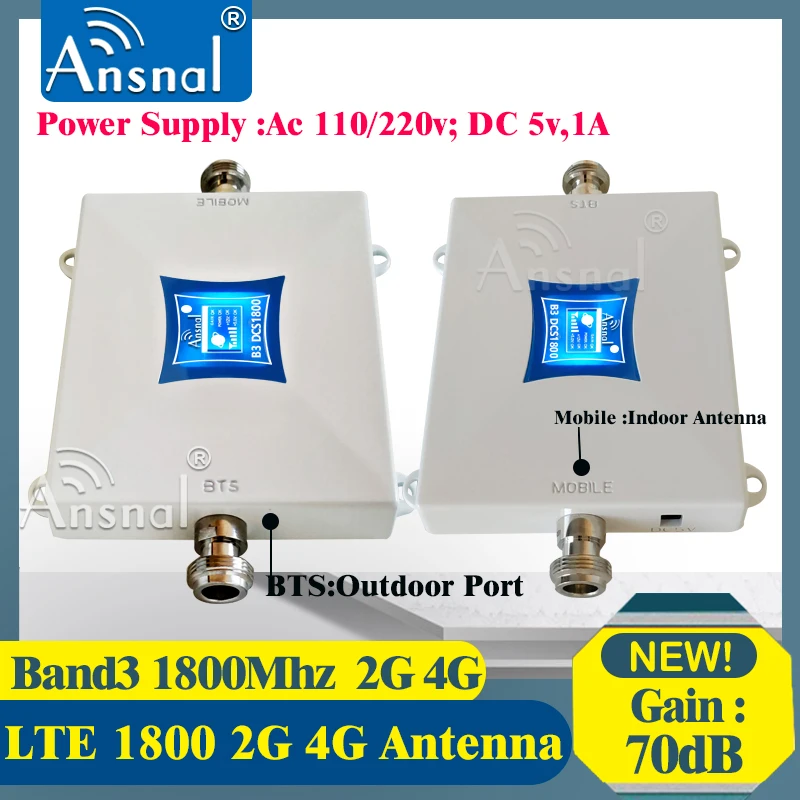

- Model:DCS LTE 4G1800MHZ .
- Color: White
- Gain: Up 65±3db; Down 70±3db
- 4G/DCS LTE 1800Mhz (Band3)Frequency Range: (Upload 1710mh~1785mhz, Download 1805mhz~1880mhz)
- Impedance: 50ohm
- Seclusion: >70db
- Max Output Power: +20dbm
- Connector Type: F Female
- Operating Temperature: -10 ~ 55 Degree
- Power by: Ac 110/220v; Dc 5.5v,1A
- Repeater Size: 110 * 75 * 20mm
- Repeater Weight: 0.45kg
-----------------Improve Your Mobile Signal. No More Bad Reception. No More Dropping Calls.
- Expand Signal Coverage Where Signal is Weak. Suitable for Home & Office Use.
- Diy Easier for Installation. You Just Need to Connect the Wires That You Have.
- Each Indoor Antenna Can Cover About 500 Square Meters (Open Space). Each Repeater Can Install Up to 3 Indoor Antennas.
- Support All Mobile Operator Voice + Sms + Data-------------------------

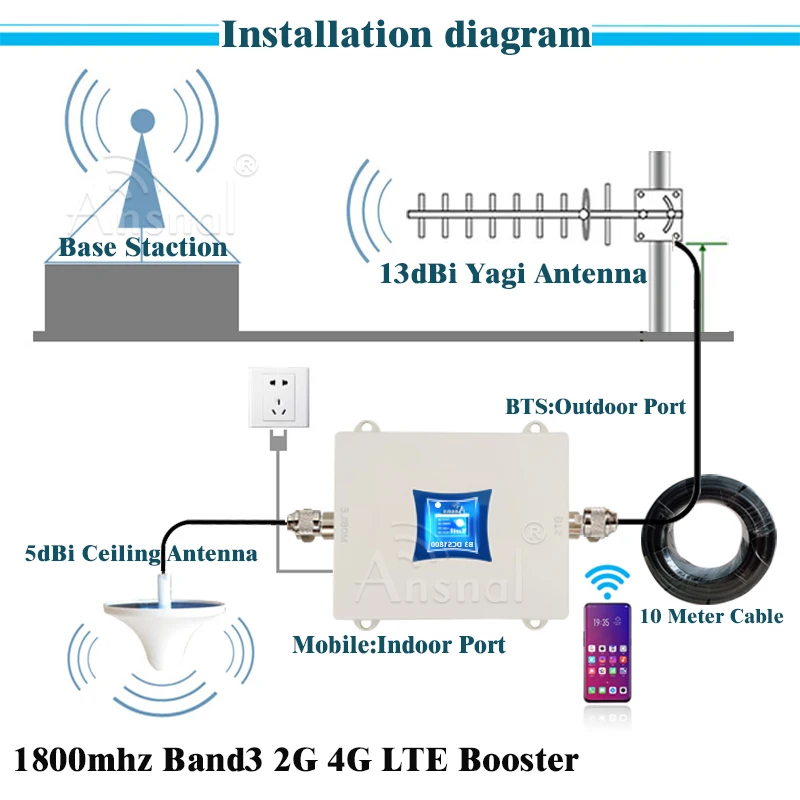

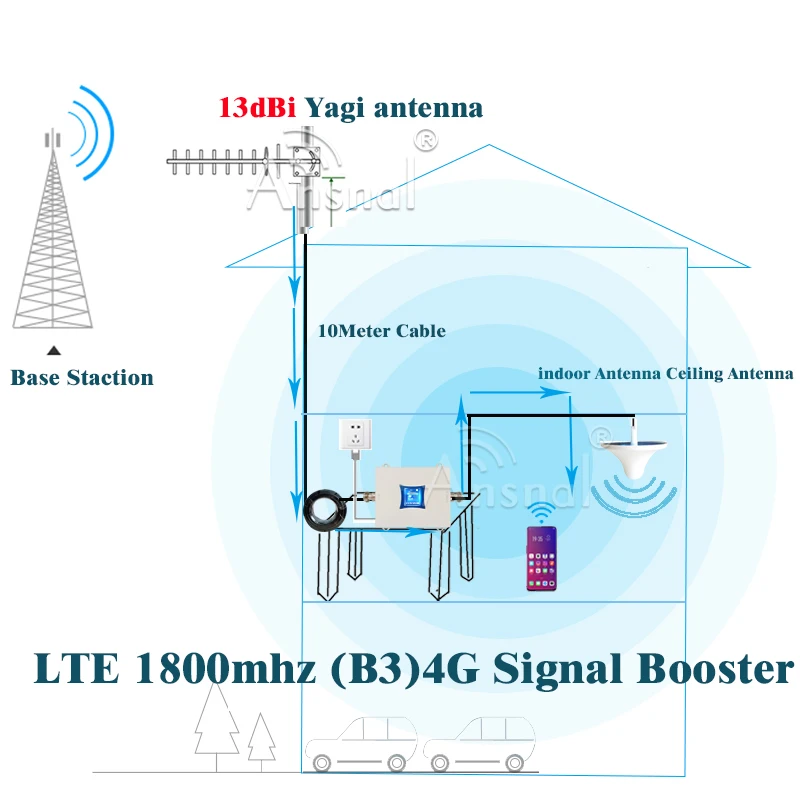

How the amplifier works？？
Mobilephone Signal Booster is a Device Used for Boosting the Cell Phone Reception to the Local Area by the Usage of a Reception Antenna, a Signal Amplifier, and an Internal Antenna. These Are Similar to the Celular Broadcast Towers Used for Broadcasting by the Network Providers, but Are Much Smaller, Usually Intended for Use in One Building.

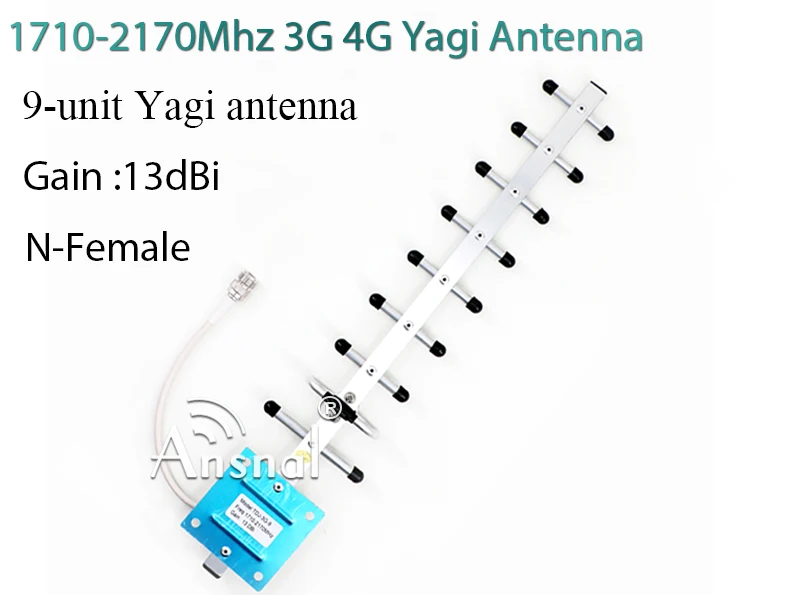

13dBi Yagi Outdoor antenna for 3G 4G Mobile Signal Booster
Yagi Antenna 3G 4G Exterieur LTE N Fe-Male High Gain WiFi Outdoor Antenna Directional Booster Amplifier Modem 50-7D 30mm Cable

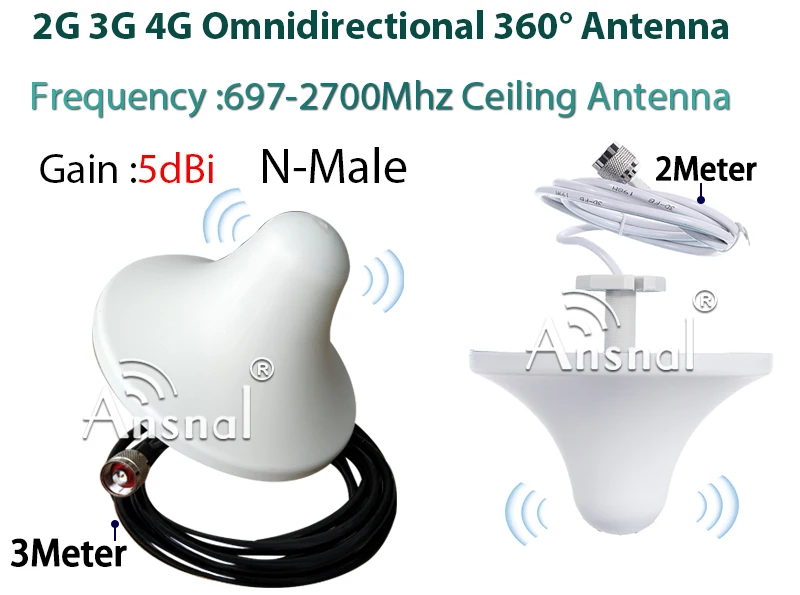

4G 3G 2G LTE WCDMA GSM 800 900 1800 2100 2600 mhz Antenna GSM Ceiling Antenna for Mobile Signal Booster Repeater or Amplifier
2G 3G 4G Antenna 700-2700MHz 4G Mobile Repeater Antenna Indoor Ceiling Internal Antenna GSM WCDMA With N-male Connector
10 Meters Black RG6 Coaxial Cable N Male to N Male Connector Low Loss Coaxial Cable for Mobile Cell Phone Signal Repeater
10M/15M/20M/30Meter 50ohms 7D Coaxial Cable N male to N male connector RF Adapter For 2g 3g 4g Mobile Signal Booster Repeater
WARRANTY/QUALITY:
CE certified.
100% QC before shipment.
Standard 1 year product warranty
Warranty will cover only items that are deemed to fail under normal usage. Accidental damage due to environmental causes or incorrect usage and installation will not be covered in warranty (but still serviceable
we will provide free Signal Booster during the warranty,but buyer need to pay for the shipment fee.
Contact us directly for warranty issues
Buyer is responsible for warranty return shipping.
