SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: ce
Origin: Mainland China
Continuous Current(A): not clear
Output Power: not clear
Commutation: Brush
Type: Micro Motor
Protect Feature: Totally Enclosed
Construction: Permanent Magnet
Usage: Home Appliance
Efficiency: IE 1
Model Number: VMOTOR
Torque: not clear
Output shaft diameter: 2.3mm
Output shaft length: 9.3mm/5.8mm
Voltage range: DC 5V-24V
No-load Speed: 2100RPM-10500RPM
Specification:
1.Brand: JOHNSON MOTOR
2.Model: 395 Motor
3.Weight: 112g
4.Voltage range: DC 5V-24V
5.Test data:
Voltage:5.0V No-load speed:2100RPM Current:75mA
Voltage:6.0V No-load speed:2570RPM Current:77mA
Voltage:12.0V No-load speed:5200RPM Current:85mA
Voltage:18.0V No-load speed:7900RPM Current:98mA
Voltage:24.0V No-load speed:10500RPM Current:108mA

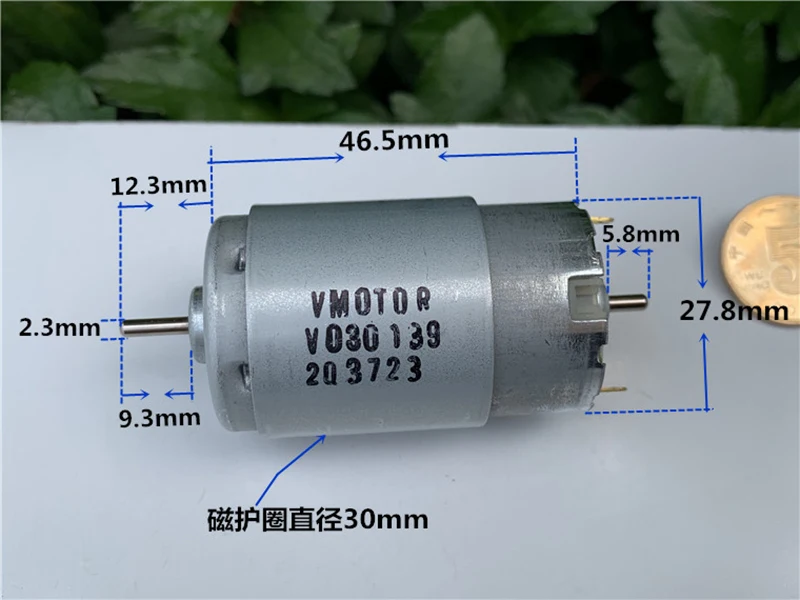

6.Motor diameter: 27.8mm(with cover 30mm)
7.Motor height: 46.5mm
8.Output shaft diameter: 2.3mm
9.Output shaft length: 9.3mm/5.8mm
Package Include:
Motor x 1pc
